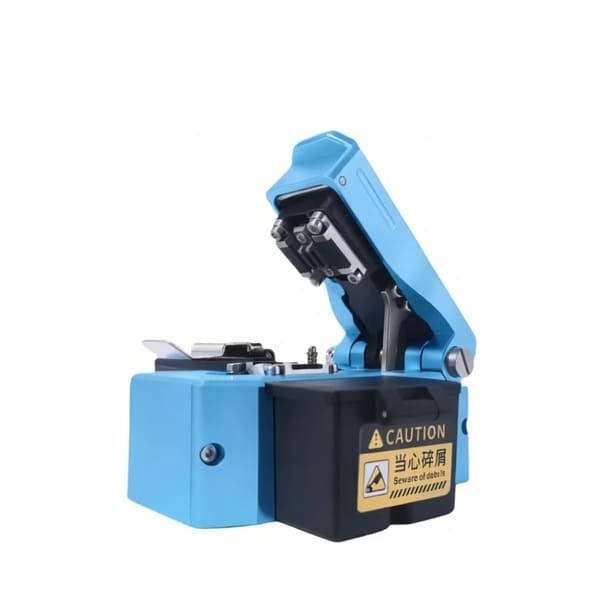

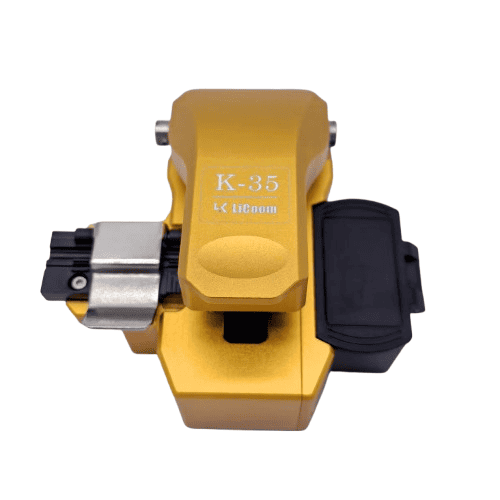

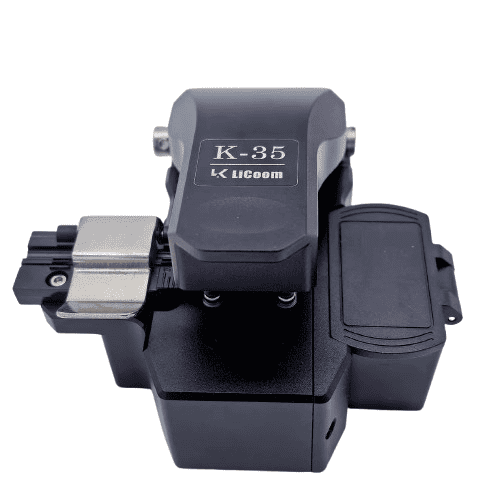

One-Step Fiber Cleaver K-35

The K-35 fiber optic cleaver is fully automatic, which only requires one pressing movement to cut fiber precisely.

The one-step fiber cleaver K35 is the updated type. The K-35 is a high precision fiber cleaver to cut 1 to 12 ribbon fiber cables.
The K-35 fiber optic cleaver is fully automatic, which only requires one pressing movement to cut fiber precisely. adds ‘one action’ operation to the old’s traditional robustness and high-quality cleaving, enhancing user productivity.
The cleaver body is made of aluminum alloy that is corrosion-resistant and durable. CNC production process ensures the high accuracy of the optical fiber cutter, its cleave angle is ≤ 0.5°.which guarantees cleaving stability in any environment.

Bare fiber diameter: 125um

Coating diameter: 0.25mm/0.9mm/3.0mm

Fiber type: Sing core fiber and ribbon fiber

Cleave length: 9-16mm，Cleave angle: ≤ 0.5°

Blade 24 positions, each position over 2000 cutting times, over 48,000m times in total

Cleaver size: 76x85x53mm，Weight: about 220g
